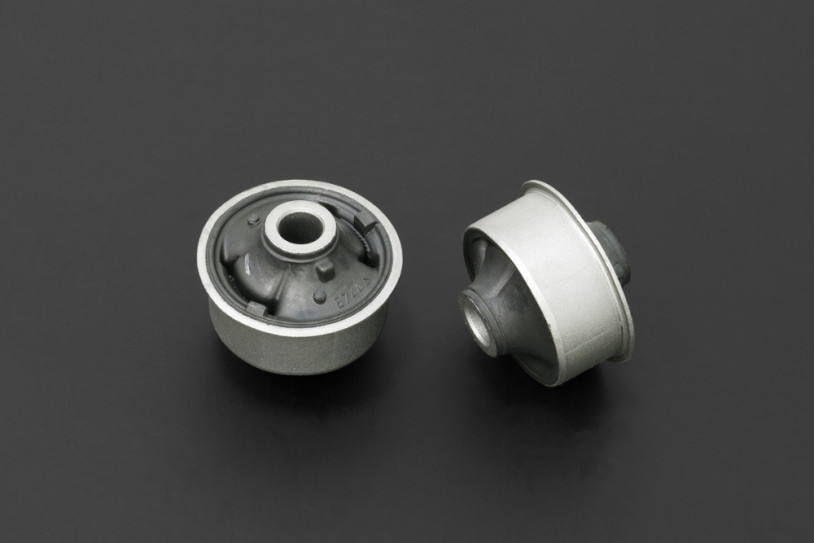

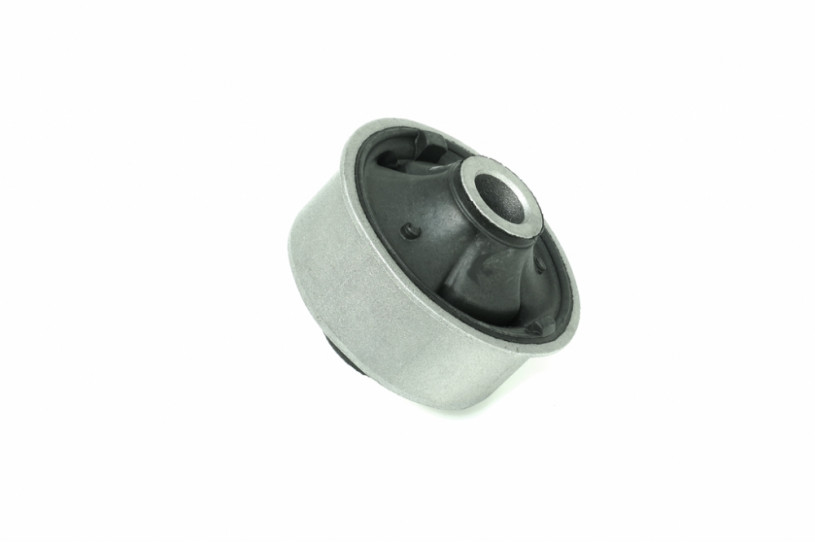

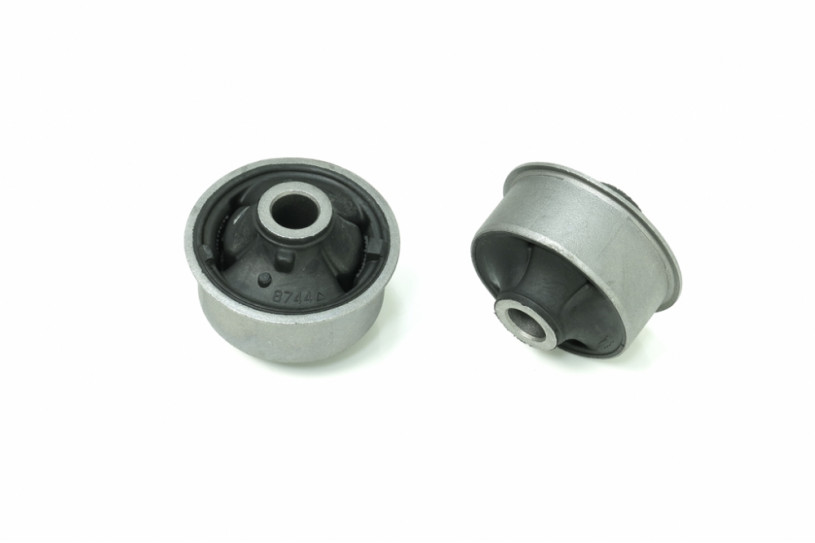

Lexus CT/NX/LM Toyota Front Lower Arm Bushing - Rear Hardrace Q1143

Harden Rubber Equipped
*10&11th Corolla:
For hatchback (Auris) & EU/China spec sedan (E150&E180) use
2 PCS/SET

The harden rubber bushings are made of high strength and anti-crack rubber materials to offer solid handling response and resistance to unwanted suspension movement during hard acceleration, braking and cornering.

. Improve handling response
. OEM direct replacement
. Regular greasing not required
. No noise or squeaks

Vehicle Applications:
Lexus CT 1st ZWA10 2011-2022
Lexus NX AZ10 2014-2021
Lexus LM 1st 2020-2023
Toyota Corolla/Altis/Auris 10th E140/E150 2006-2013
Toyota Corolla/Altis/Auris 11th E170/E180 2013-2018
Toyota Alphard / Vellfire 2nd 2008-2015
Toyota Alphard / Vellfire 3rd 2015-2023
Toyota RAV4 XA30 2005-2012
Toyota RAV4 XA40 2013-2018
Toyota Previa / Estima 3rd XR50 2006-2019
Toyota Prius 3rd XW30 2009-2015
Toyota Prius Alpha ZVW40 2012-2021

Specification
bushing dimensions diagram
Bushing Type A B C D
2 16.2 68.2 59.8 28
Measurements in mm

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Lexus CT/NX/LM Toyota Front Lower Arm Bushing - Rear Hardrace Q1143

  • Brand: HARDRACE
  • Product Code: Q1143
  • Availability: In Stock
  • $84.00
