Rear Alignment Kit Ford Usa Mustang Mk6 S550 Hardrace 8525

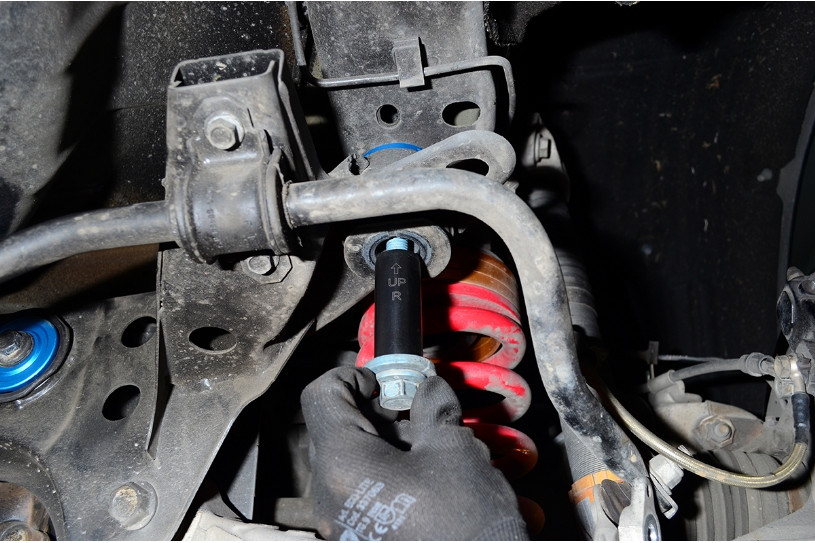

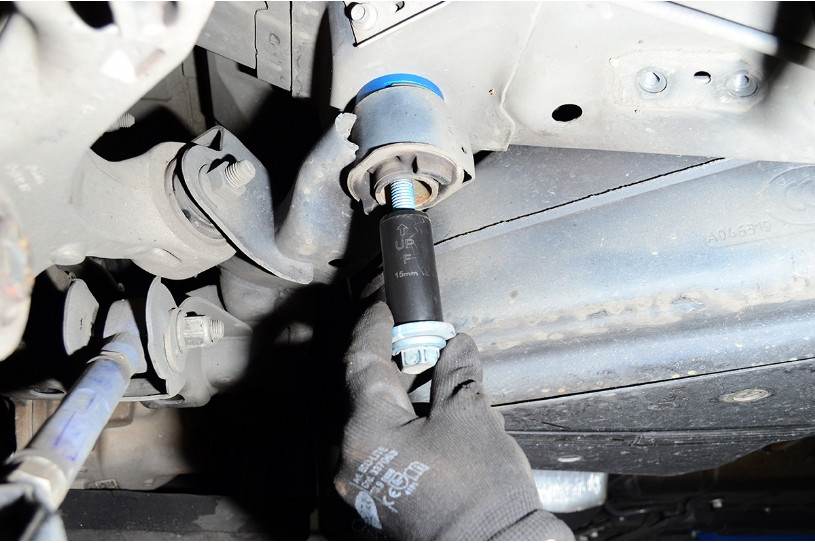

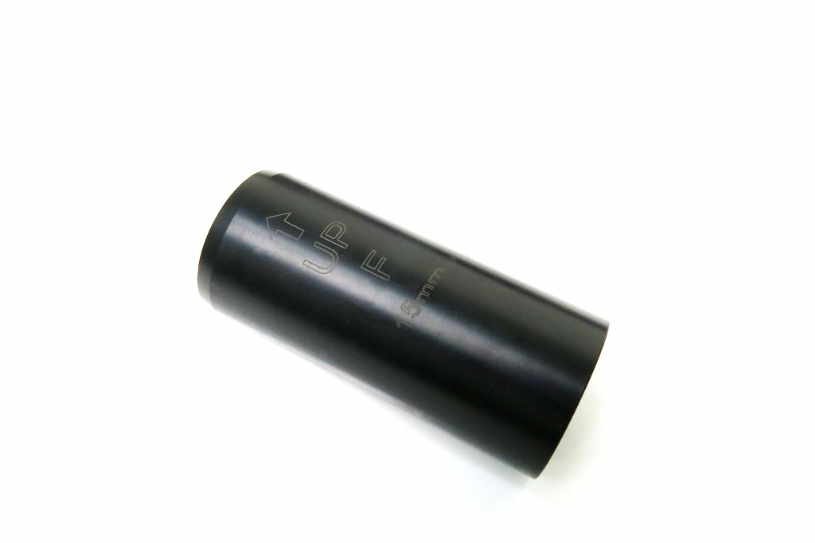

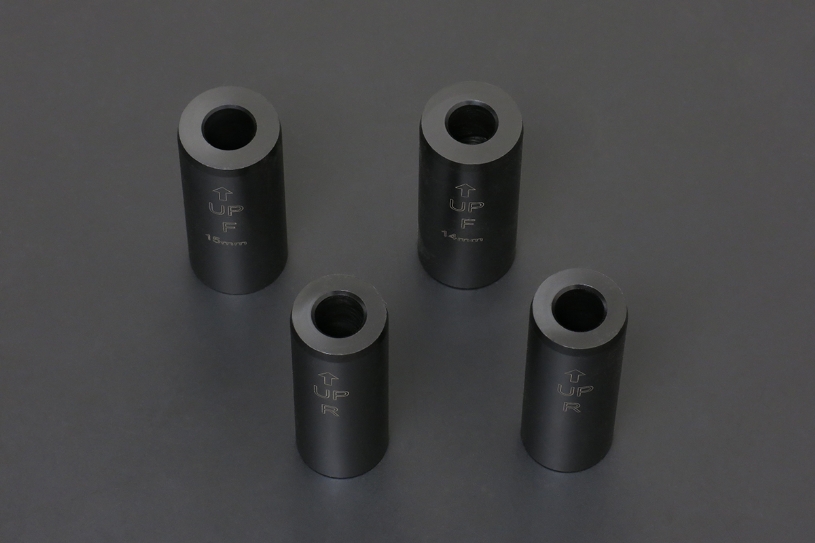

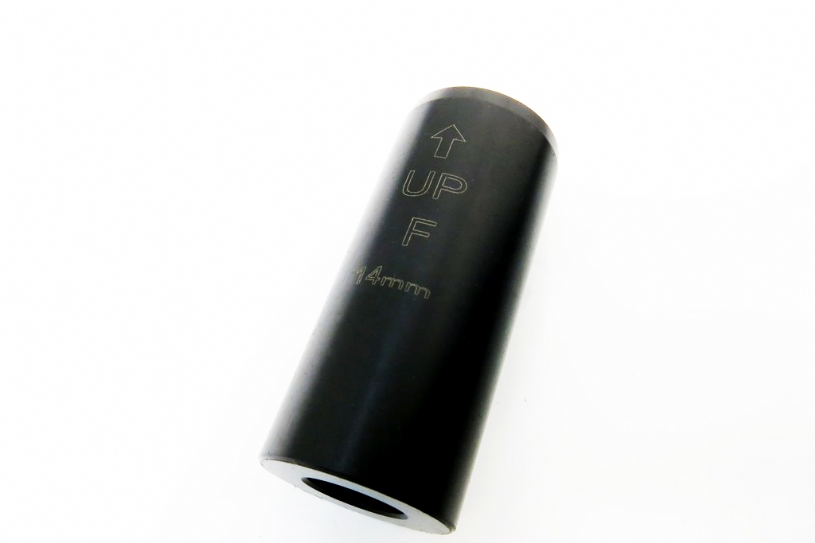

The OE subframe mounting holes of Mustang S550 are large in comparison to the subframe mounting bolts. Since the size of the bolt and the hole is different, the subframe might be misaligned to the left or right up to a 1/2" from the factory. The HARDRACE rear alignment kit is made from CNC-machined. They will slide into the subframe mounting holes to fill the space between the subframe mounts and the bolts that attach to the rear subframe.
‧ Perfect Alignment of the Rear Subframe to Chassis
‧ No increase in NVH
‧ Easy to install
‧ No permanent modifications

Vehicle Applications:
Ford USA Mustang MK6 S550 2015-present

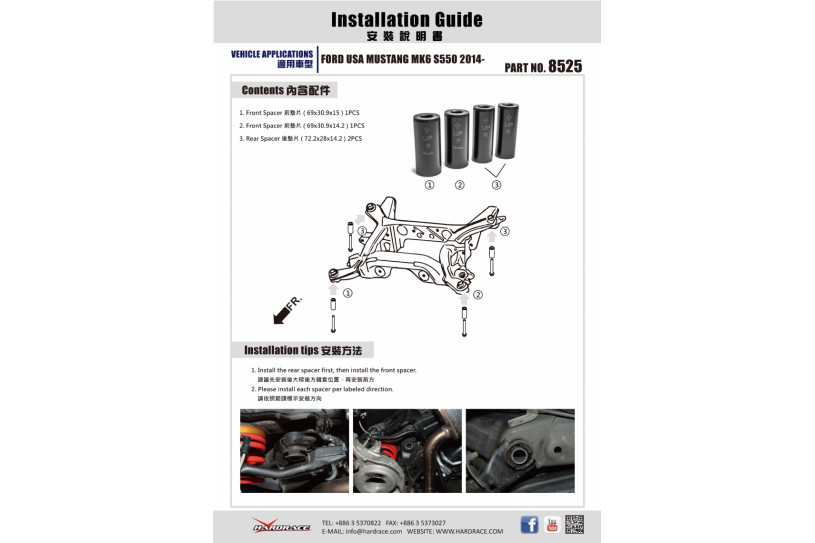

Installation Guide:
HARDRACE 8525 REAR ALIGNMENT KIT - Installation Guide.

The product is designed for street car. Some connector made with hard-rubber bushing to improve control and durability.
The product is suitable for original standard design and it could be easy to assemble on the correspond site.
The product made with high quality control and proved up to safety standard test.
The product can be adjusted with the angle of tire and lower the vehicle height.

Write a review

Note: HTML is not translated!
    Bad           Good

Rear Alignment Kit Ford Usa Mustang Mk6 S550 Hardrace 8525

  • Brand: HARDRACE
  • Product Code: 8525
  • Availability: In Stock
  • $54.00
