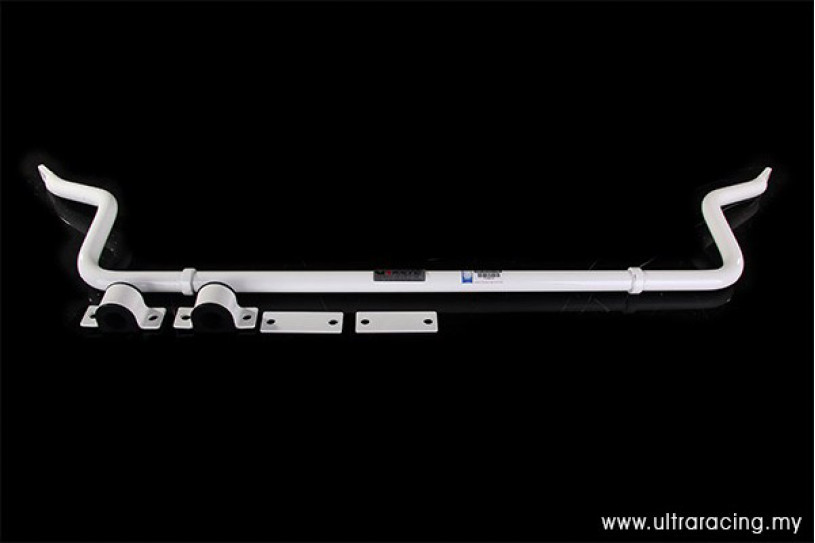

• Front Anti-roll Bar Honda Integra DC5

Front Anti-roll Bar / Front Sway Bar / Front Stabilizer Bar for Honda Integra DC5 improve your car Handling & Stability.

Specification: 25mm solid (For K24 Block or Specific After Market Exhaust Only)

Decrease oversteer. Oversteer is when the rear tires lose grip and causing the rear end of the vehicle slides out of a corner. This phenomenon happens particularly to FR (Front engine, Rear wheel drive) or RR (Rear engine, Rear wheel drive) cars. Oversteer can be corrected by stiffening the front end of the vehicle by adding Front Strut Bars and Front Anti Roll Bars.


The forces acting on the car Honda Integra DC5 when cornering. Front view.The forces acting on the car Honda Integra DC5 when cornering. Back view.
The forces acting on the car Honda Integra DC5 when cornering. Front and back view.

When any of the wheels loses contact with the road surface, there will be a deviate in handling; each of the suspension system should keep all wheels on the road surface in spite of hard cornering and in change of steering position. It’s always pleasing that that car can be set for a tiny amount of understeer so that it responds predictably to a turn of a steering wheel and the rear wheels to have a smaller dip angle than the front wheels. However this may not be achievable at all times due to the vehicle load, road condition, weather, speed and this consumes excessive time for the driver to adopt.


BEFORE install Ultra Racing’s anti roll bar on car Honda Integra DC5: When turning in corner, the weight transfer will make the car sway a side, causing body roll and more difficult to turn in to a corner, weaken the steering respond.AFTER install Ultra Racing’s anti roll bar on car Honda Integra DC5: The upgrade version of Ultra Racing’s anti roll bar will be more effectively preventing the car sway a side at cornering, greatly reduce body roll and high stability in cornering.

BEFORE install Ultra Racing’s anti roll bar on car Honda Integra DC5: When turning in corner, the weight transfer will make the car sway a side, causing body roll and more difficult to turn in to a corner, weaken the steering respond.

AFTER install Ultra Racing’s anti roll bar on car Honda Integra DC5: The upgrade version of Ultra Racing’s anti roll bar will be more effectively preventing the car sway a side at cornering, greatly reduce body roll and high stability in cornering.


Test cars with installed Ultra Racing’s Front Strut Bar and Rear Anti-roll Bar and without.


Movie of installation of the Ultra Racing’s Front Anti-roll Bar.

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Front Anti-roll Bar Honda Integra DC5

  • Brand: Ultra Racing
  • Product Code: AR25-430
  • Availability: In Stock
  • $294.00
